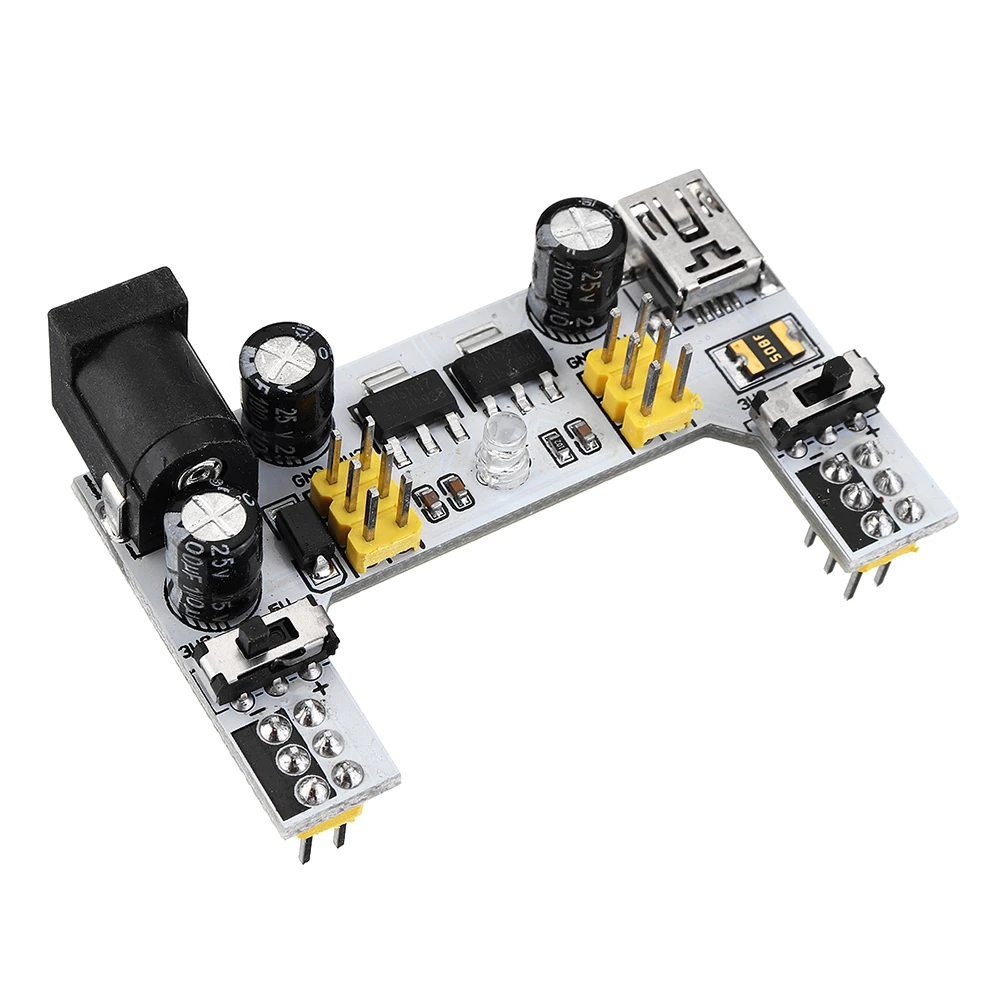

MB102 Breadboard Power Supply Module

This Small and compact XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module can make your project easy and portable and you will not need to carry bulky power supplies with you. The module comes with a series diode, polarity reversal protection. The two-channel module can take DC 7V to 12V input through DC (Black ) Jack and can produce 3.3V and +5V on each separate channels.

The module is having onboard Mini USB port to take input to the module. It also has an indicator LED to show power On/Off status and Voltage switching (between 3.3v or 5V ) button for switching the output voltage on the breadboard on both channels. It is a must-have product in your DIY kit for experimenters those have to test/prototype electronic circuits on a breadboard

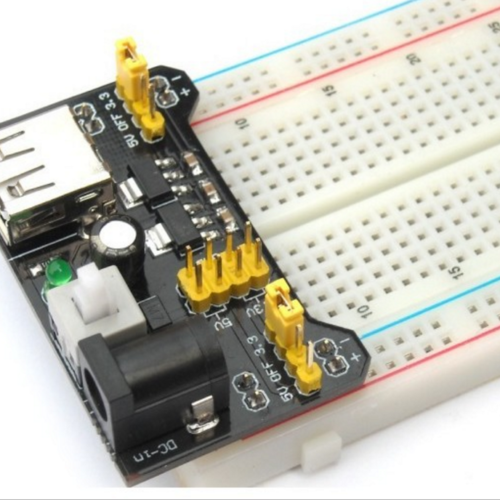

This is a power supply module for the standard breadboard. Its concave design will not waste your proto zone. This breadboard power shield supports Mini USB power supply and power jack 7-12V supply. There are two independent power optional: 5V/3.3V. With this board, you can send power to both power lane of the breadboard, and each side has an on/off switch.

Product Images are shown for illustrative purposes only and may differ from the actual product.



Features:

1. Locking On/Off Switch
2. Green LED Power Indicator
3. Voltage Swapping Switch on both rail Channel
4. Its concave design will not waste your proto zone.
5. Easy to install on a breadboard with Compact portable size





General Specification
Input Voltage Range	6.5V – 12V
Output Voltage(V)	3.3/5 Adjustable
Length (mm)	53
Width (mm)	36
Height (mm)	14
Weight (gm)	11
Shipment Weight	0.016 kg
Shipment Dimensions	8 × 6 × 4 cm

Please allow 5% measuring deviation due to manual measurement.



Package Includes:

1 x XD-42 Breadboard Power Supply 5V / 3.3V Mini USB.
