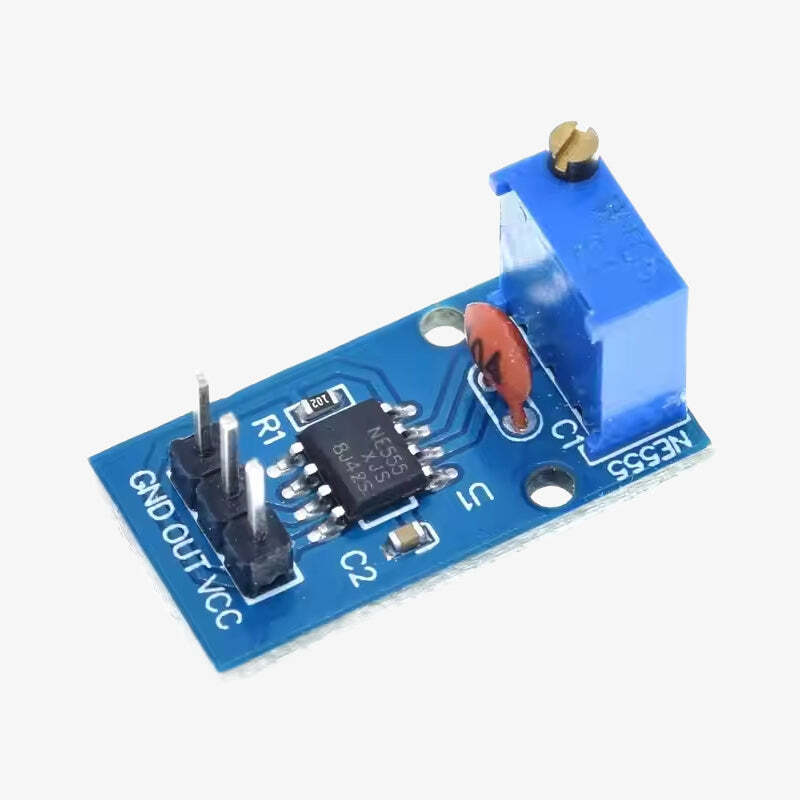

NE555 Adjustable Frequency Pulse Generator Module

The NE555 Adjustable Frequency Pulse Generator Module is a versatile and reliable component designed to generate precise pulse waveforms for a wide range of applications. It utilizes the NE555 timer IC, offering high stability and accuracy. This module is ideal for creating adjustable square wave signals, which can be used in motor speed control, LED brightness control, signal testing, and more.

NE555 Adjustable Frequency Pulse Generator Module Features:

• Adjustable Frequency: Easily adjust the output pulse frequency using the onboard potentiometer.
• Wide Frequency Range: Supports a wide range of frequencies, making it suitable for various applications.
• Stable Output: Ensures consistent and reliable pulse generation.
• User-Friendly Design: Equipped with terminal blocks and a clear layout for easy connections.
• Compact Size: Small and lightweight for integration into compact projects.

NE555 Adjustable Frequency Pulse Generator Module Specifications:

• IC Used: NE555 Timer
• Operating Voltage: 5V–12V DC
• Output Signal Type: Square wave
• Frequency Range: 1Hz to 100kHz (adjustable)

Package Includes:

1 x NE555 Adjustable Frequency Pulse Generator Module
