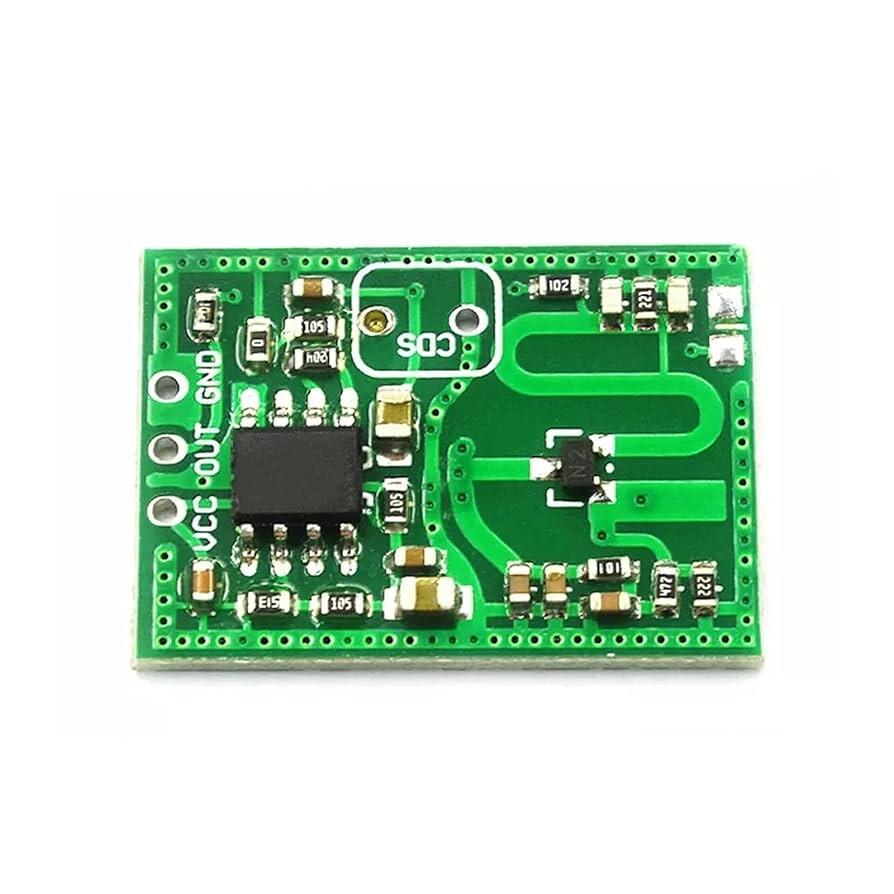

RCWL-0515 Microwave Radar Human Body Induction Motion Detector Sensor

Name: RCWL-0515 Microwave Radar Human Body Induction Motion Detector Sensor
SKU: 56600
Availability: OutOfStock

KSh200.00

Out of stock

Category: Sensors

Description

The RCWL-0515 Microwave Motion Detector Sensor is a high-sensitivity module using Doppler radar technology for motion detection. It emits a 2.7GHz microwave signal to detect object movement with precision. This sensor boasts long-range detection, strong reliability, a wide induction angle, and operates across a broad voltage range. Unlike infrared sensors, it is unaffected by environmental conditions, making it ideal for applications like human body induction lighting and anti-theft alarms.

The RCWL-0515 is a microwave radar motion sensor, similar in operation to the RCWL-0516. It detects motion by emitting microwave signals and analyzing the reflected signals for changes caused by movement. This makes it more robust than PIR sensors in some environments.

Wiring the RCWL-0515 with Arduino:

The RCWL-0515 typically has three main pins for connection:

VIN (or VCC): Connect this to the 5V output of your Arduino. The module can operate on a voltage range of 4V to 28V.
GND: Connect this to the GND pin of your Arduino.
OUT: This is the digital output pin. Connect it to a digital input pin on your Arduino (e.g., Digital Pin 2). When motion is detected, this pin will go HIGH; otherwise, it will be LOW.

Optional Connections:

CDS Pins: These pins are for connecting an optional Light Dependent Resistor (LDR) to enable or disable the sensor based on ambient light levels. You can connect one end of the LDR to one CDS pin and the other end to GND.

Specifications of RCWL-0515 Microwave Motion Detector Sensor

Working Voltage: 4-18V
Working Current: 4mA
Working Frequency: 2.7GHz
Sensing Range: 12m typical
Dimensions: 25x18xmm
Additional Features: Reserved patch and in-line CDs interface, adjustable induction distance, lead-free process, adjustable repeated trigger time

How to use of RCWL-0515 Microwave Motion Detector Sensor

Power Connection: Connect the sensor to a 4-18V power supply.
Integration: Utilize the reserved patch and in-line CDs interface for integration into your system.
Sensing Distance Adjustment: Adjust the induction distance and repeated trigger time as needed for your application.
Application Areas: Ideal for use in human body induction lighting, anti-theft alarms, and other security and automation systems.
