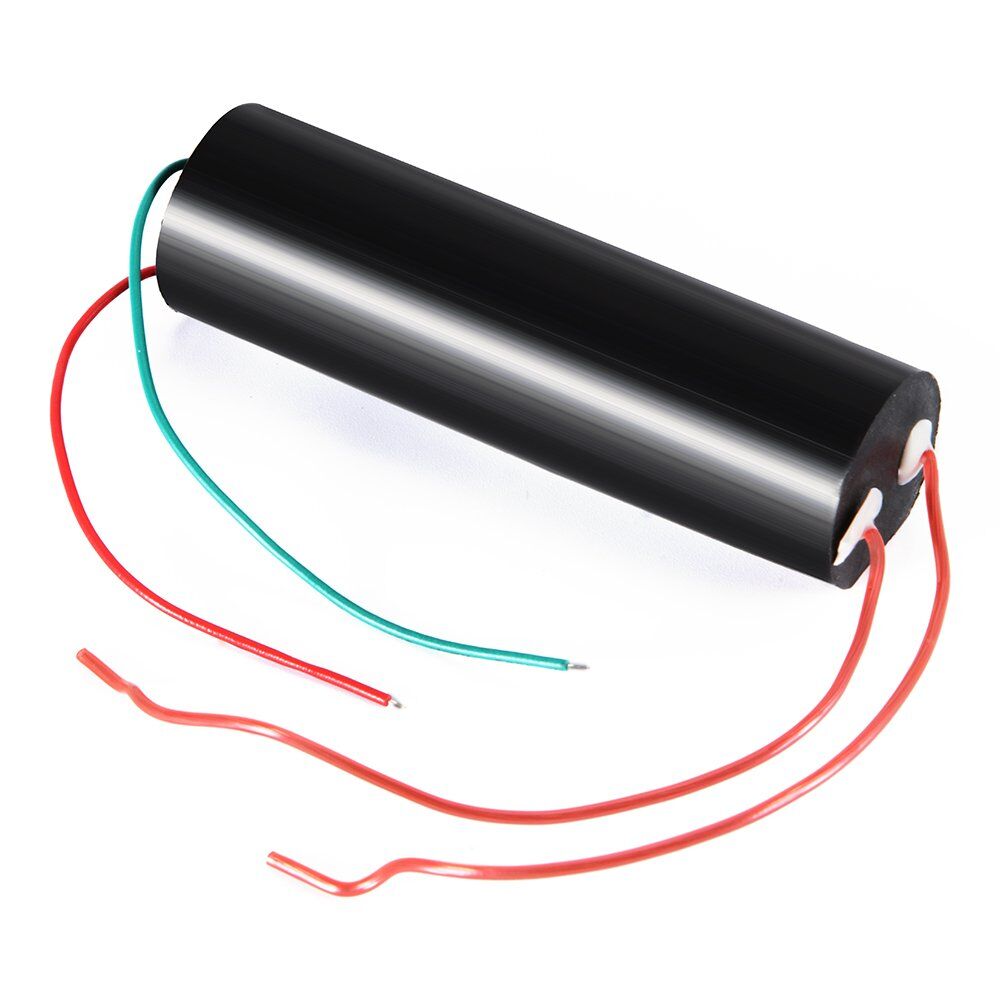

Step Up Power Module3-6V 400KV

Description

• Input voltage: DC 3V to 6V
• Input current: 2A – 5A
• High pressure type: pulse current
• Output voltage: 400000V(Please pay attention to safety)

Specification:
Size：24x22x63mm
Input voltage: DC 3V to 6V
Input current: 2A – 5A
High pressure type: the type of pulse current
Output voltage: 400000V(Please pay attention to safety)
High pressure discharge distance between: 10mm – 20mm
The output high voltage wire length: 100mm
Input power cord length: 100mm (the red line is positive)

Wiring:
Red and green power connection red line:”+” green line “-”
Output : the other side ,same color cable

Please Notice:

the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module
